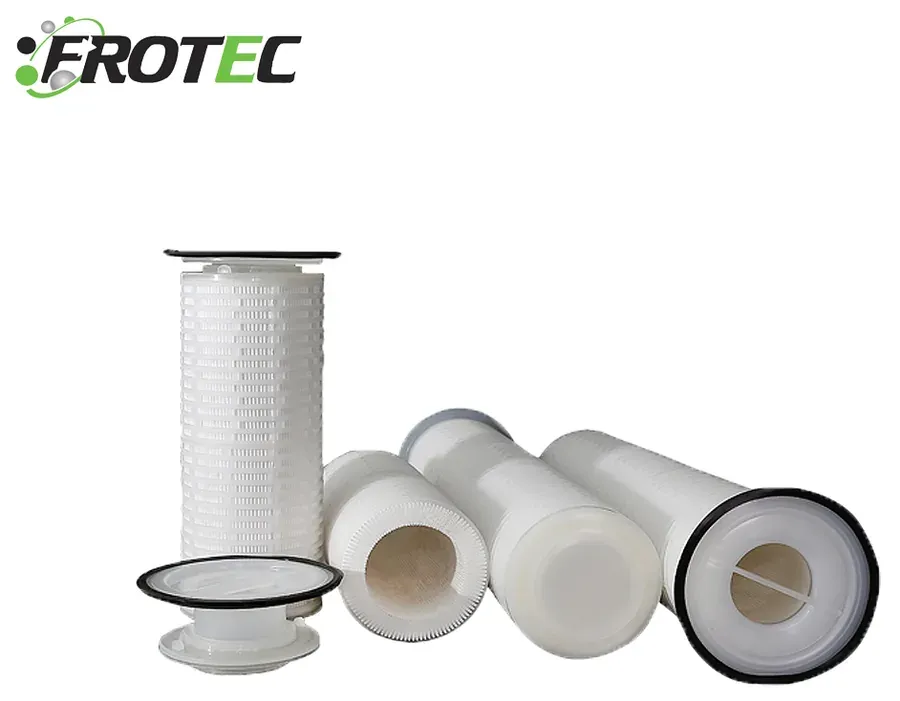

PP Pleated Microfiltration Cartridge
Polypropylene (PP) pleated microfiltration cartridge with an all-PP flow path, high dirt-holding capacity and low flow resistance for liquid and gas filtration. Available in multiple lengths, end-cap configurations and nominal ratings from 0.1 micrometre.
Specifications
- Membrane Material
- Polypropylene (PP)
- Support / Housing / Core / End Caps
- Polypropylene (PP)
- Filtration Area
- 0.5 m² per 10-inch element
- Outside Diameter
- 69 mm
- Nominal Lengths
- 5, 10, 20, 30 and 40 inches
- Nominal Micron Ratings
- 0.1, 0.2, 0.45, 0.65, 1, 3, 5 micrometres and additional options
- Recommended pH Range
- 1–13
Overview
The PP pleated microfiltration cartridge uses a polypropylene membrane, support layers, housing, core and end caps. Its pleated structure provides a large filtration area with low resistance and high dirt-holding capacity for precision liquid and gas filtration.
Key Benefits
All-polypropylene construction supports broad chemical compatibility and avoids mixed-material flow-path components.
Large pleated area supports high flow, low pressure drop and extended service life when correctly selected and operated.
Multiple micron ratings, lengths, end-cap styles and seal materials support replacement and OEM filtration programs.
Typical Applications
Electronics and water-system prefiltration, including photoresist filtration.
Beverage, spirits, beer and syrup filtration; pharmaceutical and biological-fluid filtration; and compressed-air filtration.
Organic solvents, inks, reagents, electroplating solutions, metalworking fluids and oilfield injection water, subject to compatibility review. Do not use for halogenated hydrocarbon filtration.
Selection Information Required
Please provide the liquid or gas composition, required micron rating, target flow, operating temperature, differential pressure, cartridge length, end-cap connection, seal material, sanitization method and applicable industry standard. Final compatibility and service-life expectations must be confirmed for the actual process.
Contact Huamo to request a project-specific quotation and datasheet.
